Documentation

Creating a notification channel

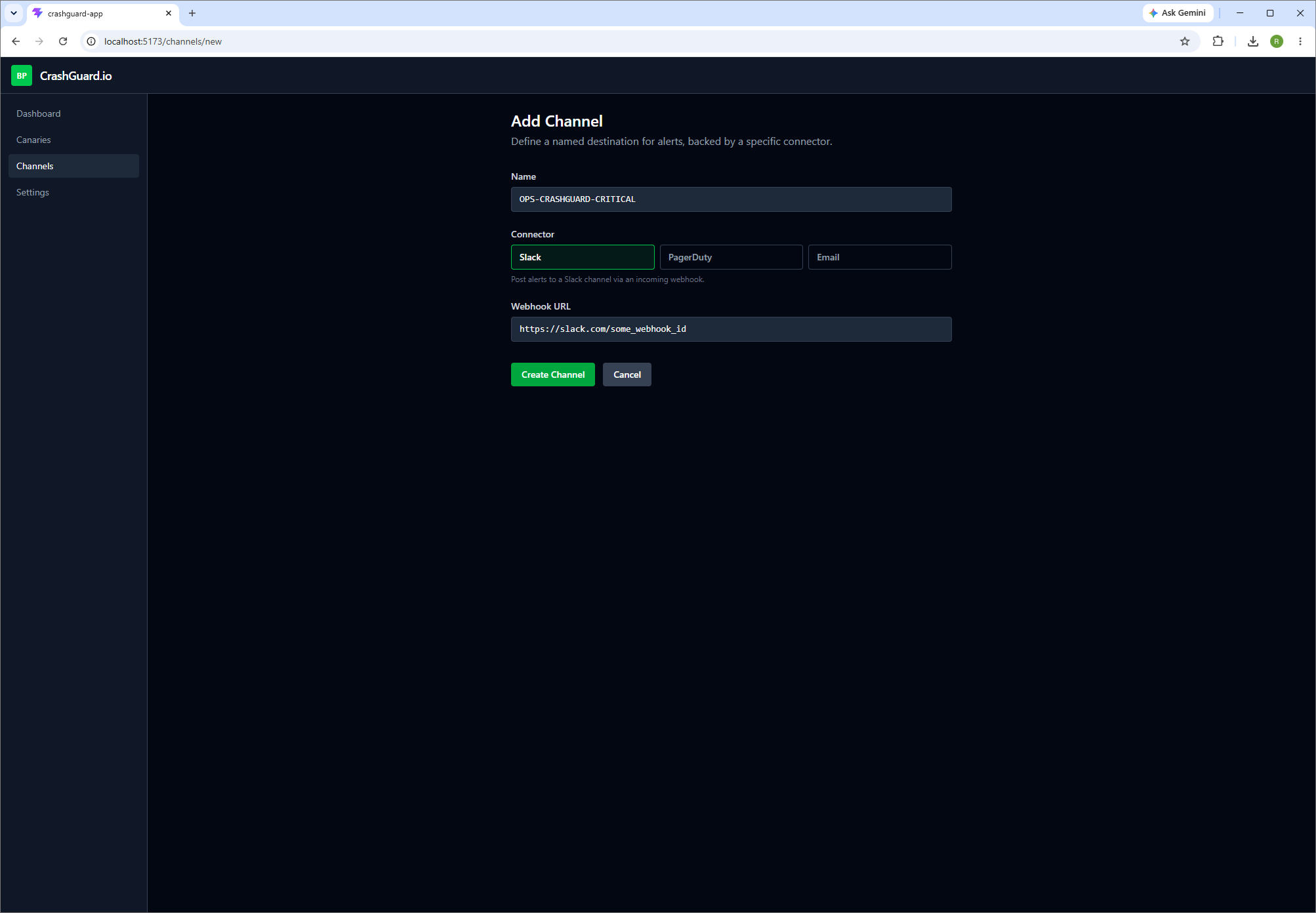

A channel is a named destination for alerts — it pairs a connector (Slack, PagerDuty, or email) with that connector's config, like a webhook URL or integration key. Create channels from the Admin App's channel editor, then attach them to a canary type so its alerts route there.

Under the hood, this calls POST /api/channels with a name, a connector type, and that connector's config:

{
  "name": "on-call-slack",
  "type": "slack",
  "config": { "webhookUrl": "https://hooks.slack.com/services/..." }
}

type must be one of slack, pagerduty, or email — each expects a different shape for config:

• slack — { webhookUrl: string }
• pagerduty — { integrationKey: string }
• email — { address: string }

The response includes the new channel's id. Pass that id in a canary type's defaultChannelIds to have every canary of that type alert through it.

Creating a canary type

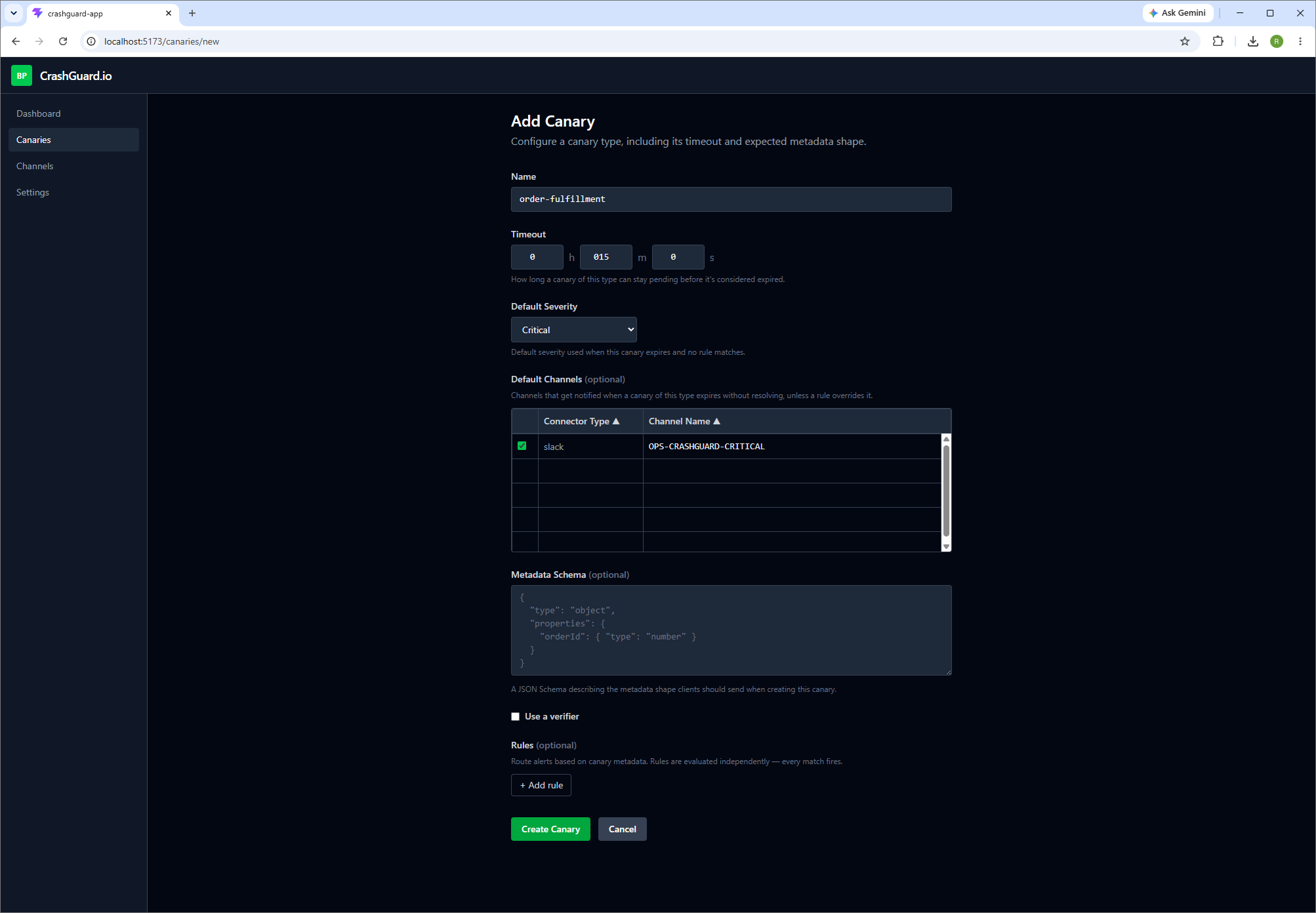

A canary type defines what you're watching for — its name, how long it can go without a check-in before it's overdue, its severity, and which channels it alerts through by default. Canaries you start from the SDK reference a canary type by name.

Under the hood, this calls POST /api/canary-types:

{
  "name": "nightly-export",
  "timeout": 1800,
  "extendLimit": 2,
  "severity": "Critical",
  "metadataSchema": null,
  "verifierUrl": null,
  "rules": [],
  "defaultChannelIds": [4]
}

• timeout — seconds a canary of this type can stay pending before it's overdue.
• extendLimit — how many times a verifier's Extend action can push the expiry back out, per canary.
• severity — used to prioritize alerts when one fires.
• verifierUrl — optional; the endpoint the Engine calls when a canary of this type goes overdue (see below).
• defaultChannelIds — ids of the channels (from the section above) that alerts route to by default.

rules let you override severity and channel per-field, based on a canary's metadata — each rule names a field, operator, and value to match, plus the severity and channel to use when it matches.

Starting a canary

Call CreateCanaryAsync at the point your job, workflow, or scheduled task begins. CanaryType must match a canary type you've configured in the Admin App, and ReferenceId identifies this specific run — use something unique per execution, like a job ID.

Call CreateCanary at the point your job, workflow, or scheduled task begins. CanaryType must match a canary type you've configured in the Admin App, and ReferenceID identifies this specific run — use something unique per execution, like a job ID.

Call create_canary at the point your job, workflow, or scheduled task begins. canary_type must match a canary type you've configured in the Admin App, and reference_id identifies this specific run — use something unique per execution, like a job ID.

var client = new CrashguardClient(new RestClient("http://localhost:8050"));

var canary = await client.CreateCanaryAsync(new CreateCanaryRequest
{
    CanaryType = "nightly-export",
    ReferenceId = jobId,
    Metadata = new { triggeredBy = "scheduler" },
});

client, err := crashguard.New("http://localhost:8050", nil)
if err != nil {
    log.Fatal(err)
}

canary, err := client.CreateCanary(ctx, crashguard.CreateCanaryRequest{
    CanaryType:  "nightly-export",
    ReferenceID: jobID,
    Metadata:    map[string]any{"triggeredBy": "scheduler"},
})

let client = Client::new("http://localhost:8050")?;

let canary = client
    .create_canary(CreateCanaryRequest {
        canary_type: "nightly-export".to_string(),
        reference_id: job_id.clone(),
        metadata: Some(json!({ "triggeredBy": "scheduler" })),
    })
    .await?;

The Engine starts a countdown based on the canary type's configured timeout. If the canary isn't resolved before it expires, the Engine treats it as overdue and either fires alerts or calls a verifier, if one is configured.

Checkpointing a canary

Checkpoints record intermediate progress without affecting the canary's expiry. Use them to leave a trail of what stage a long-running job reached, useful when triaging a triggered canary later.

await client.CheckpointCanaryAsync(
    "nightly-export",
    jobId,
    stage: "uploaded-to-s3",
    metadata: new { rowCount = 41_203 });

_, err = client.CheckpointCanary(ctx, "nightly-export", jobID, "uploaded-to-s3", map[string]any{
    "rowCount": 41203,
})

client
    .checkpoint_canary(
        "nightly-export",
        &job_id,
        "uploaded-to-s3",
        Some(json!({ "rowCount": 41_203 })),
    )
    .await?;

If a job runs longer than expected but is still making progress, call PulseCanaryAsync instead to push the expiry back out by the canary type's timeout, without marking a checkpoint.

If a job runs longer than expected but is still making progress, call PulseCanary instead to push the expiry back out by the canary type's timeout, without marking a checkpoint.

If a job runs longer than expected but is still making progress, call pulse_canary instead to push the expiry back out by the canary type's timeout, without marking a checkpoint.

await client.PulseCanaryAsync("nightly-export", jobId);

_, err = client.PulseCanary(ctx, "nightly-export", jobID)

client.pulse_canary("nightly-export", &job_id).await?;

Each pulse sets the canary's ExpiresAt to now plus the canary type's timeout, the same way starting the canary did. Call it from inside a long-running loop — e.g. once per batch or every few minutes — so the Engine doesn't flag the job as overdue while it's still healthy and working. Pulsing doesn't record any progress trail; pair it with CheckpointCanaryAsync if you also want that.

Each pulse sets the canary's ExpiresAt to now plus the canary type's timeout, the same way starting the canary did. Call it from inside a long-running loop — e.g. once per batch or every few minutes — so the Engine doesn't flag the job as overdue while it's still healthy and working. Pulsing doesn't record any progress trail; pair it with CheckpointCanary if you also want that.

Each pulse sets the canary's ExpiresAt to now plus the canary type's timeout, the same way starting the canary did. Call it from inside a long-running loop — e.g. once per batch or every few minutes — so the Engine doesn't flag the job as overdue while it's still healthy and working. Pulsing doesn't record any progress trail; pair it with checkpoint_canary if you also want that.

Resolving a canary

Call ResolveCanaryAsync once the job completes successfully. A resolved canary is done — it won't be checked for expiry again.

Call ResolveCanary once the job completes successfully. A resolved canary is done — it won't be checked for expiry again.

Call resolve_canary once the job completes successfully. A resolved canary is done — it won't be checked for expiry again.

await client.ResolveCanaryAsync("nightly-export", jobId);

_, err = client.ResolveCanary(ctx, "nightly-export", jobID)

client.resolve_canary("nightly-export", &job_id).await?;

If the job fails outright, don't resolve it — just let the canary expire, or trigger it manually from the Admin App. An unresolved, expired canary is exactly what should alert you.

Adding a verifier

A verifier is your own HTTP endpoint, set as VerifierUrl on a canary type. Instead of immediately triggering an alert when a canary expires, the Engine calls your verifier first and lets it decide what should happen — useful when "didn't check in on time" doesn't always mean "actually failed."

When a canary of that type goes overdue, the Engine sends an HTTP POST to your verifier URL with this body:

{
  "canaryType": "nightly-export",
  "referenceId": "job-48213",
  "status": "Pending",
  "startedAt": "2026-06-23T02:00:00Z",
  "expiresAt": "2026-06-23T02:30:00Z",
  "extendCount": 0,
  "metadata": { "triggeredBy": "scheduler" }
}

Your verifier must respond with a JSON body naming one of three actions:

{ "action": "Trigger" }

• Trigger — the job actually failed. The Engine marks the canary triggered and fires alerts as configured.
• Extend — give it more time. The Engine pushes the expiry out by the canary type's timeout and increments extendCount, up to the type's configured extend limit.
• Resolve — the underlying work actually completed, it just never called back. The Engine marks the canary resolved as if your service had called ResolveCanaryAsync ResolveCanary resolve_canary itself.

A common pattern: have the verifier check the actual system the canary is watching (a queue depth, an S3 object's last-modified time, a downstream API) rather than trusting the absence of a check-in alone.
